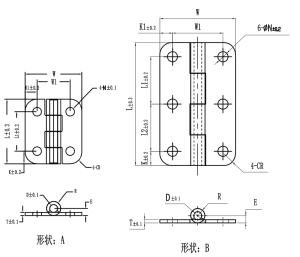

尺寸：
单位：mm
| 型号 | 规格 | 形状 | L | W | W1 | L1 | L2 | K | K1 | N | T | CR | D | R | E | 通孔/锥形孔 |

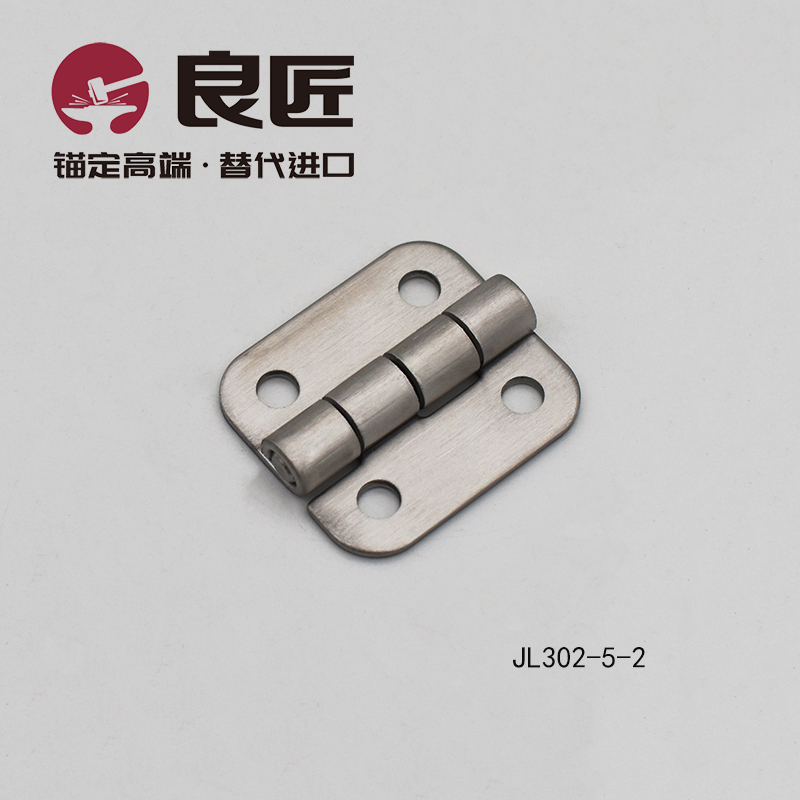

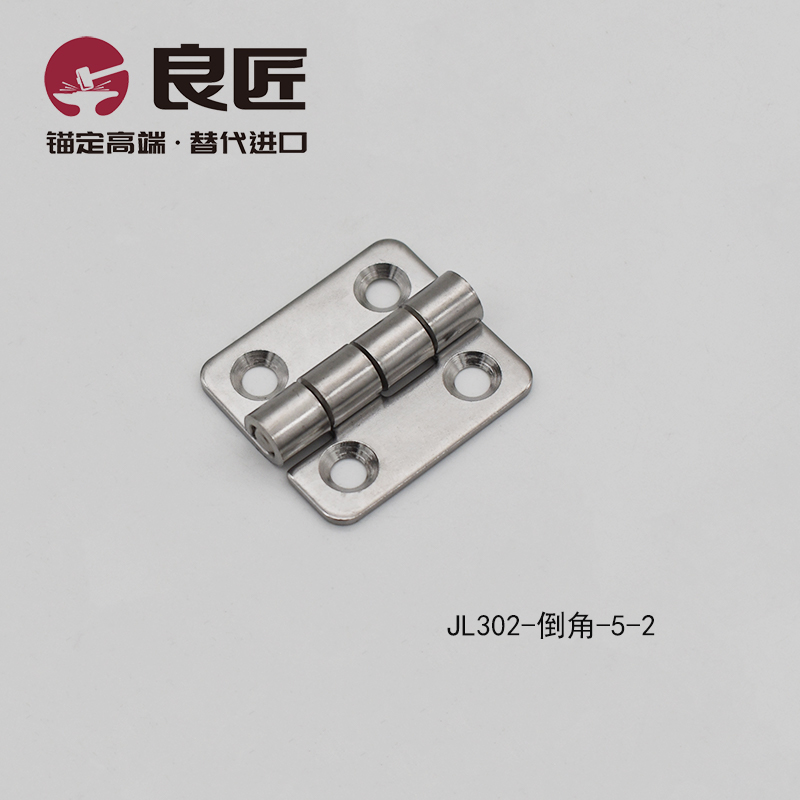

| JL302 | 5–2 | A | 41 | 36 | 21 | 25 | / | 8 | 7.5 | φ5.5 | 2 | 7.5 | φ5 | 4.6 | 4.6 | 通孔/锥形孔 |

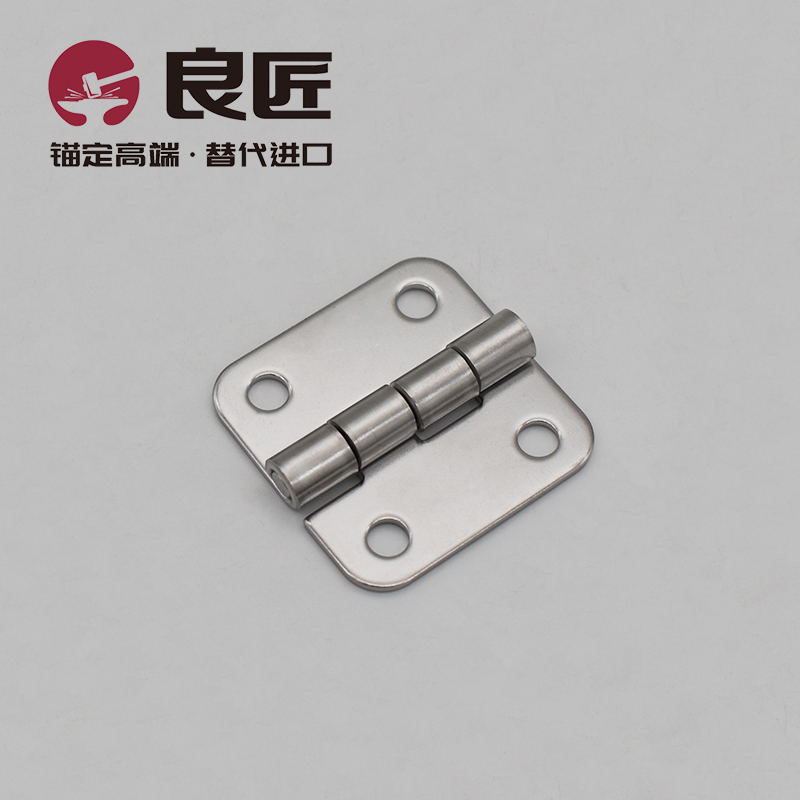

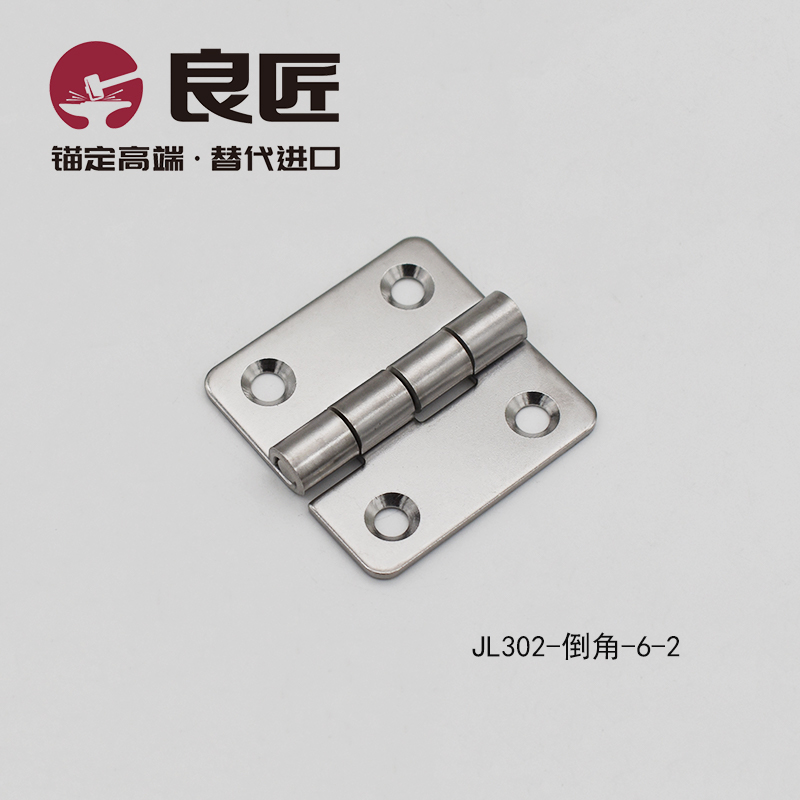

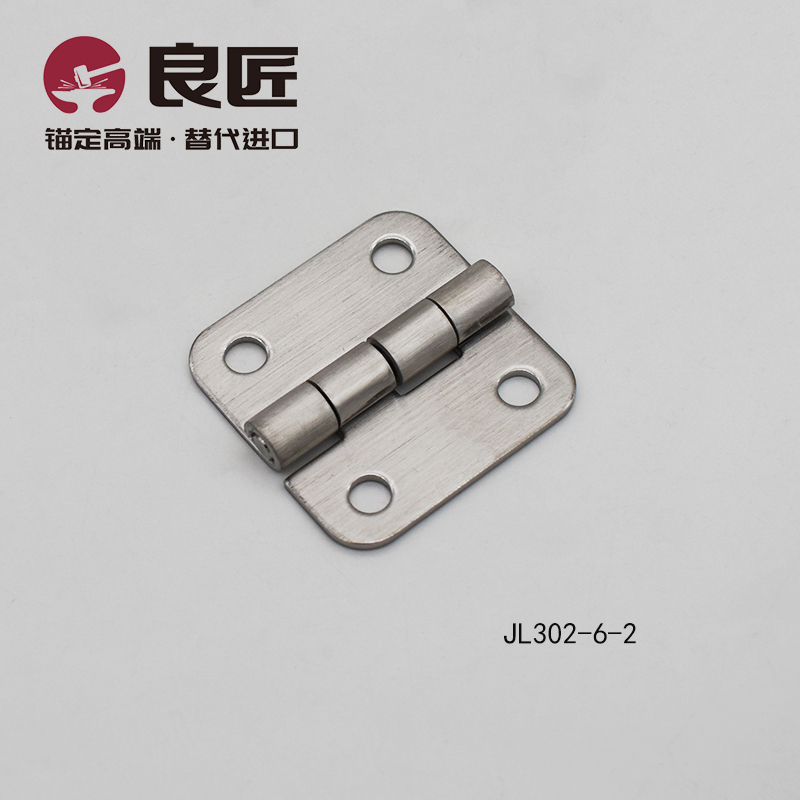

| 6–2 | 48 | 48 | 32 | 30 | 9 | 8 | φ6.5 | 通孔/锥形孔 | ||||||||

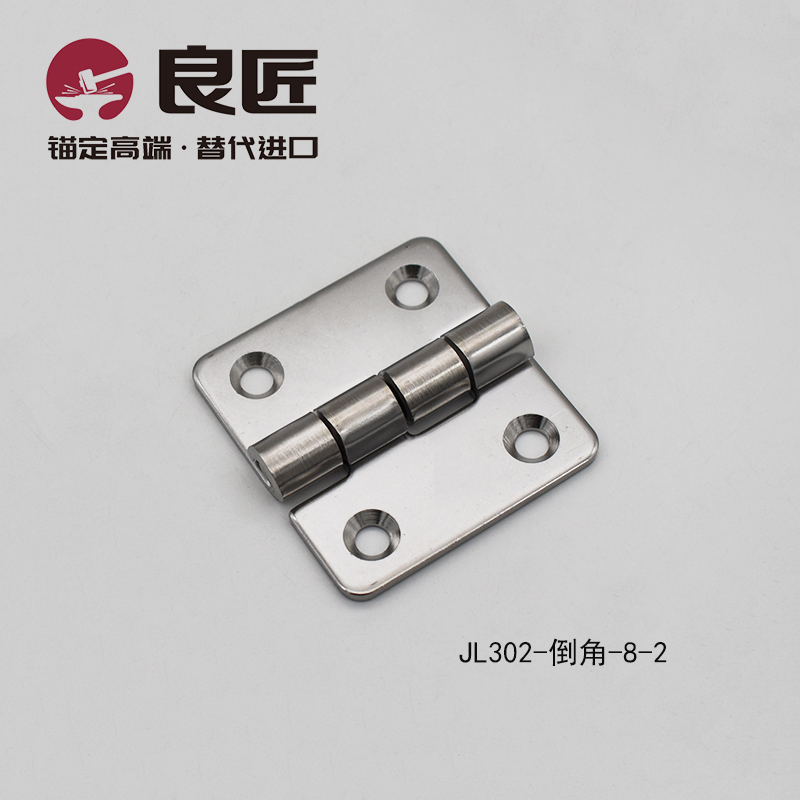

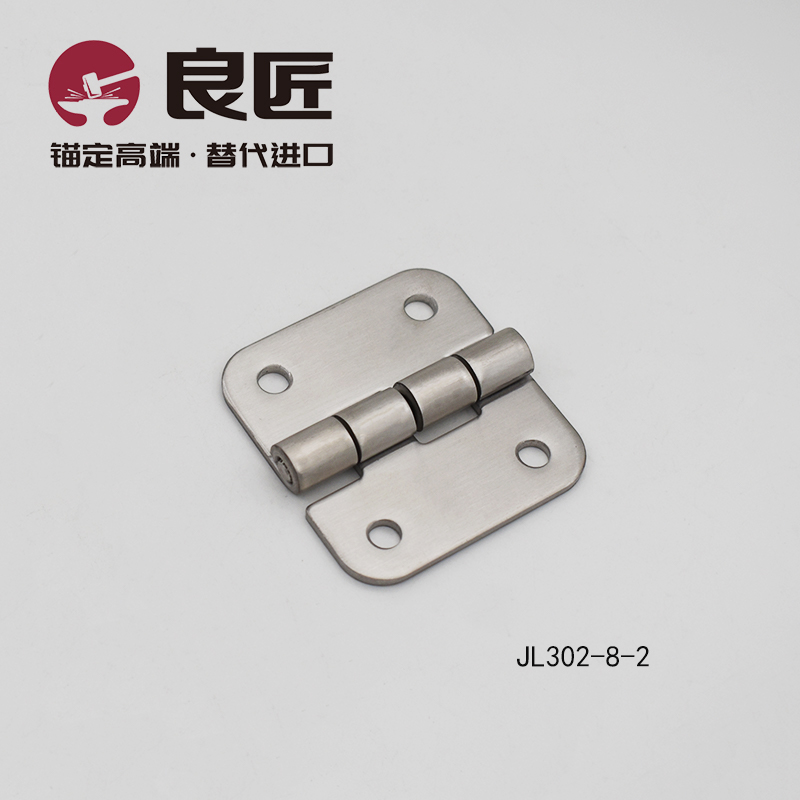

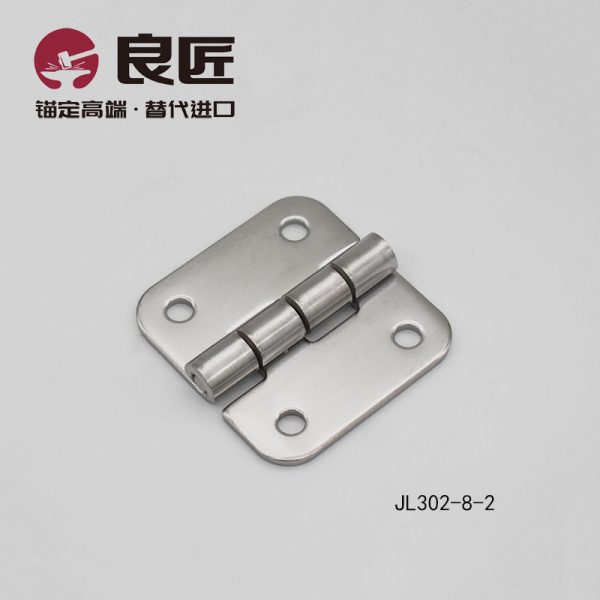

| 8–2 | 59 | 62 | 42 | 37 | 11 | 10 | 3 | 10 | 5.6 | 5.6 | 通孔/锥形孔 | |||||

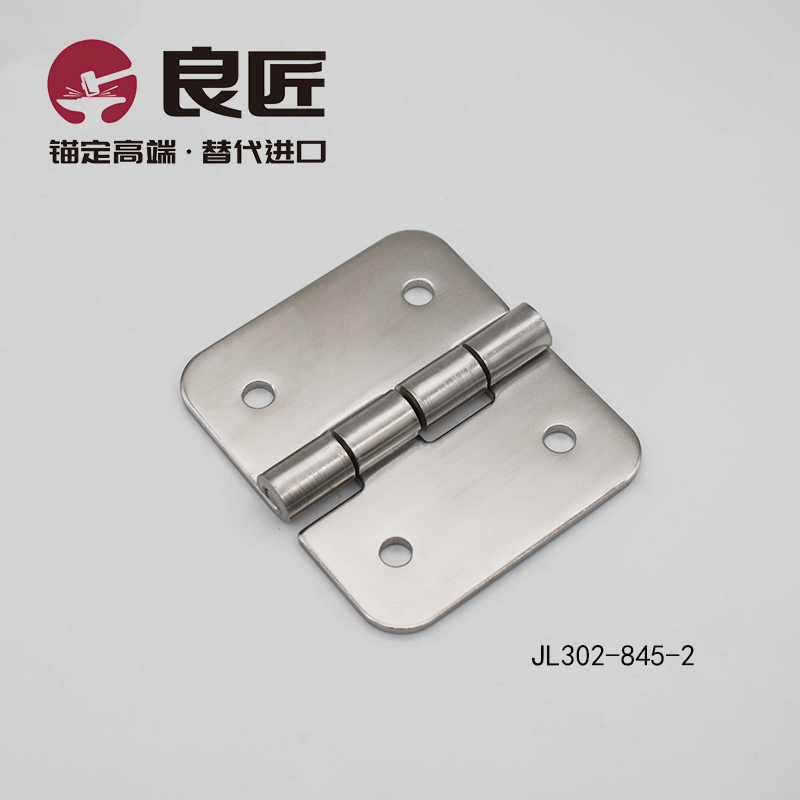

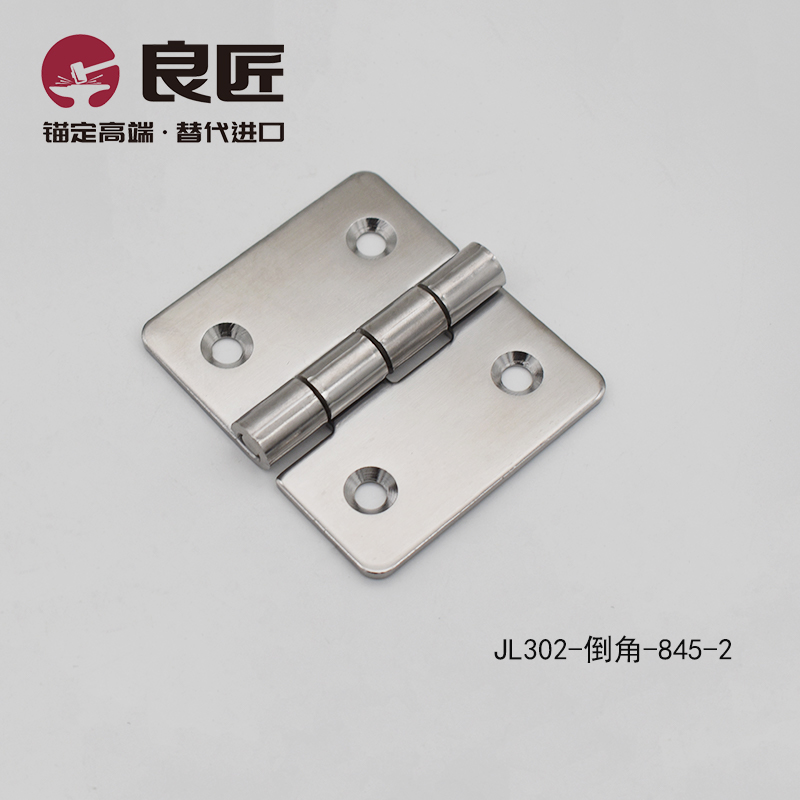

| 845–2 | 70 | 80 | 47 | 43 | 13.5 | 16.5 | 通孔/锥形孔 | |||||||||

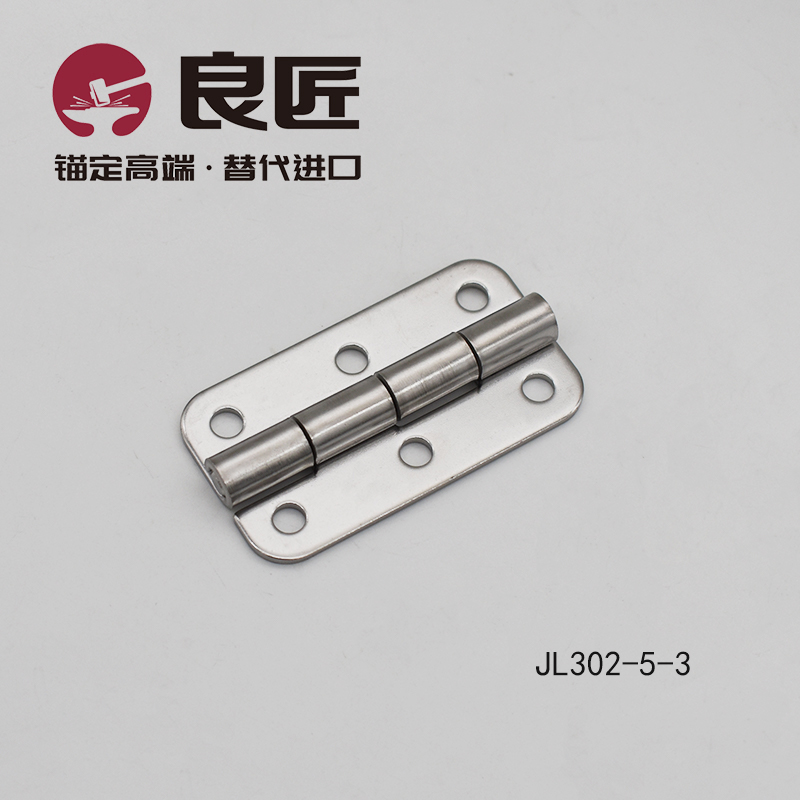

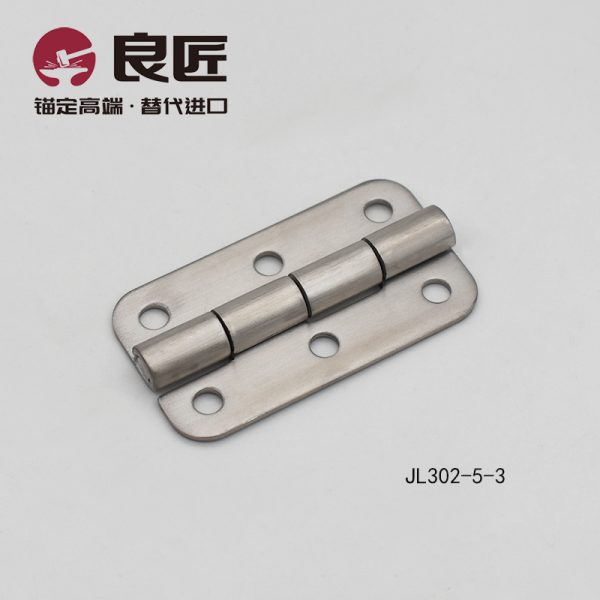

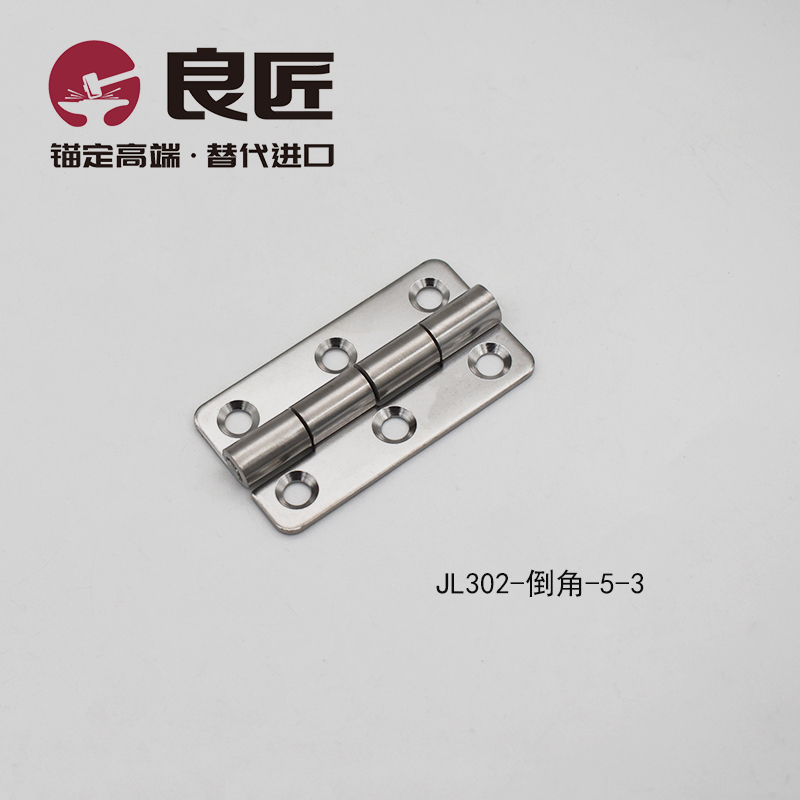

| 5–3 | B | 66 | 36 | 21 | 25 | 25 | 8 | 7.5 | φ5.5 | 2 | 7.5 | 4.6 | 4.6 | 通孔/锥形孔 | ||

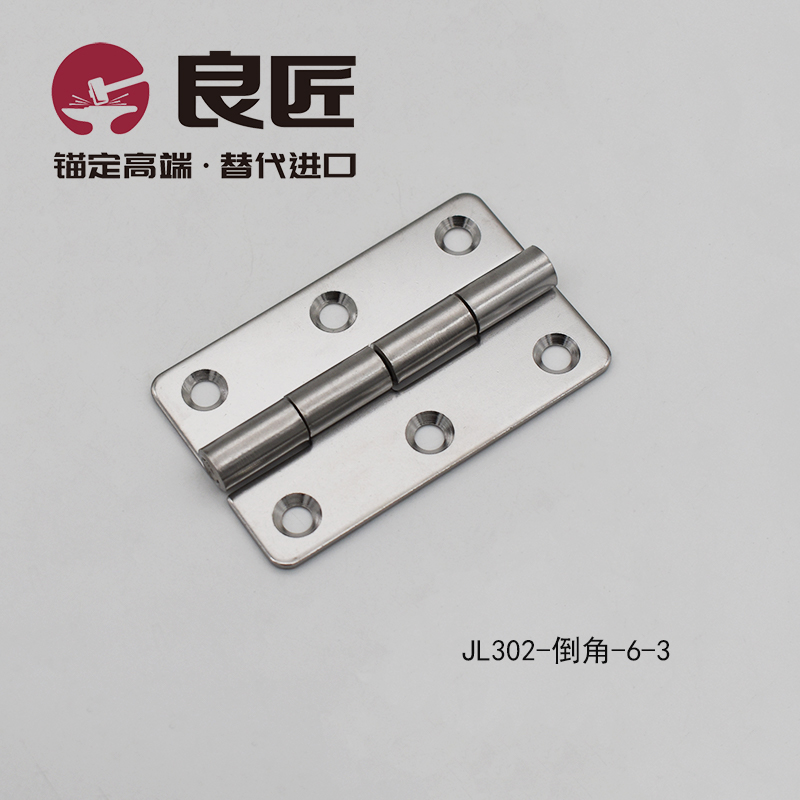

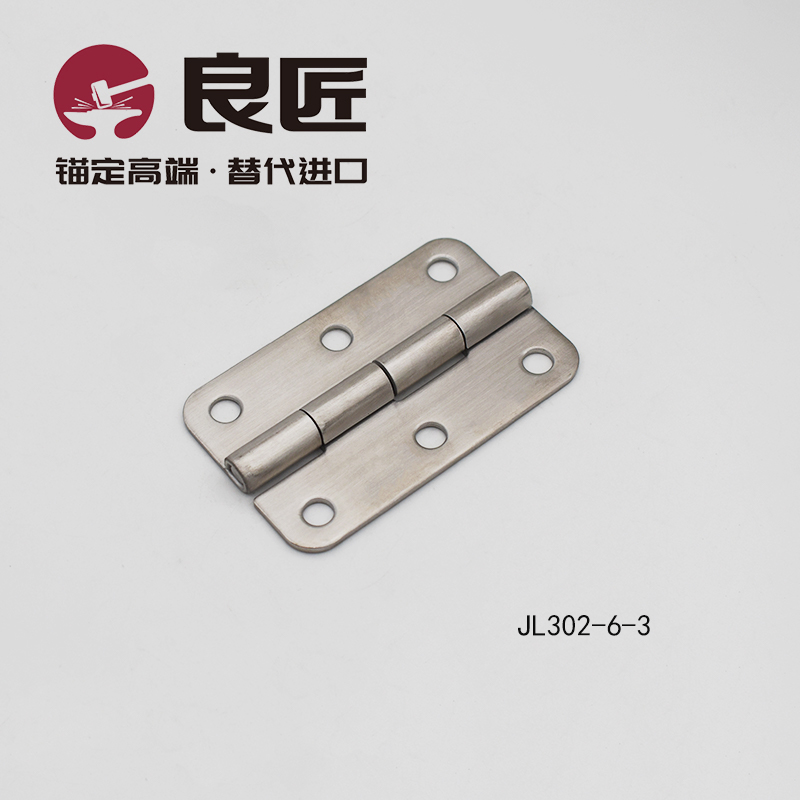

| 6–3 | 78 | 48 | 32 | 30 | 30 | 9 | 8 | φ6.5 | 通孔/锥形孔 | |||||||

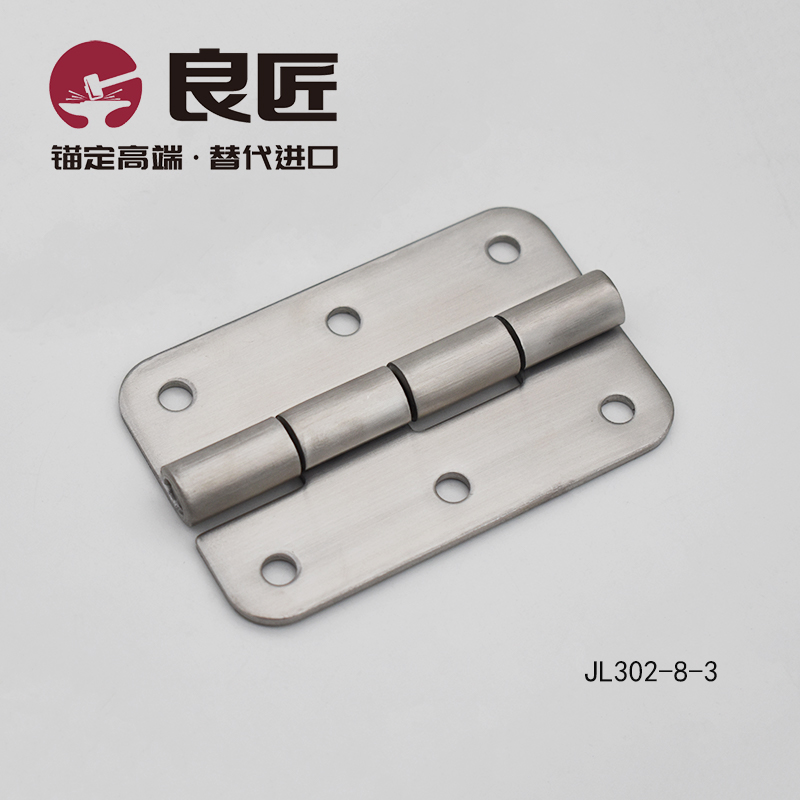

| 8–3 | 96 | 62 | 42 | 37 | 37 | 11 | 10 | 3 | 10 | φ6 | 6.1 | 6.1 | 通孔/锥形孔 | |||

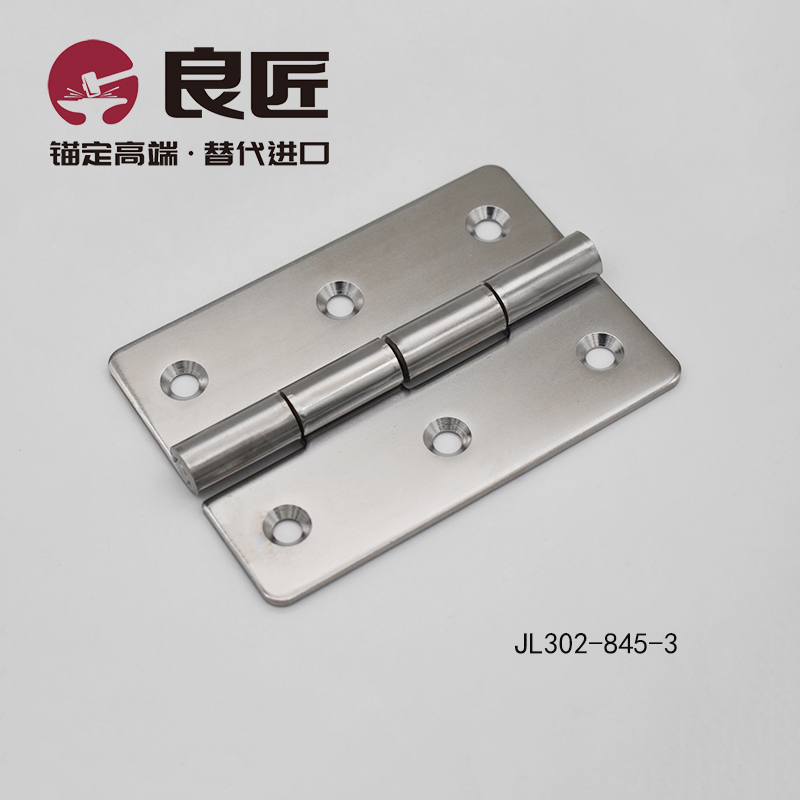

| 845–3 | 113 | 80 | 47 | 43 | 43 | 13.5 | 16.5 | 通孔/锥形孔 |

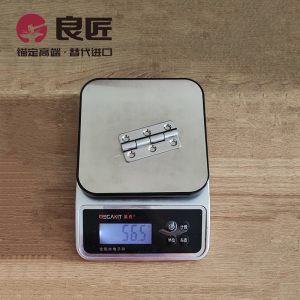

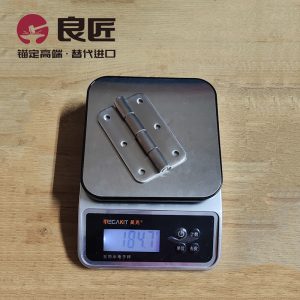

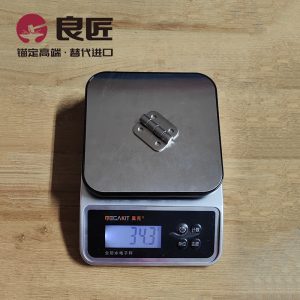

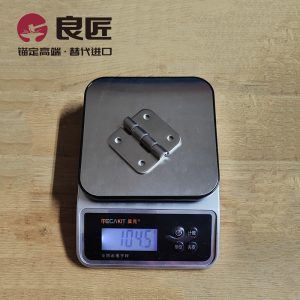

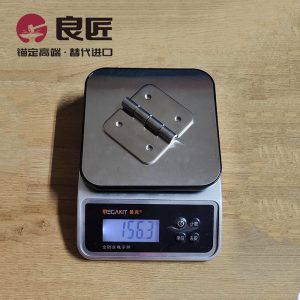

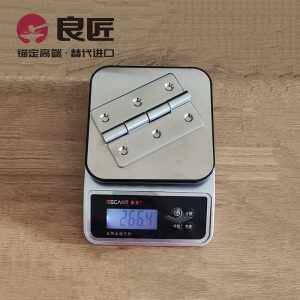

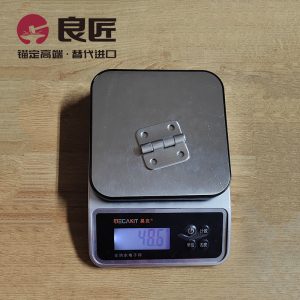

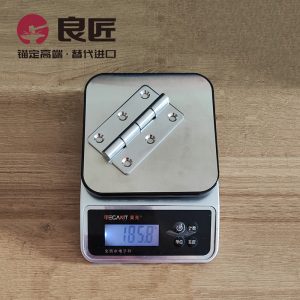

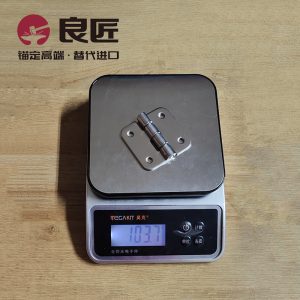

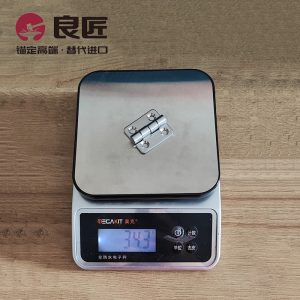

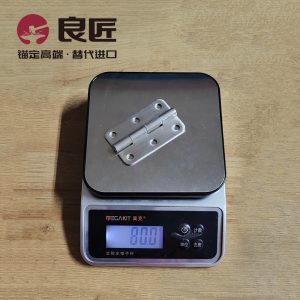

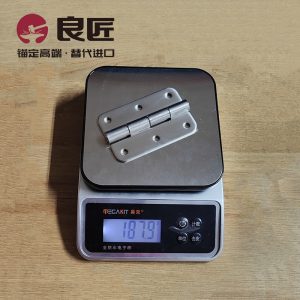

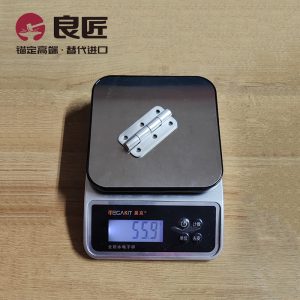

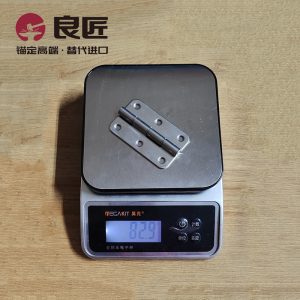

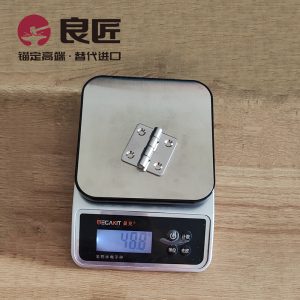

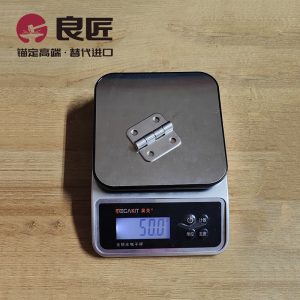

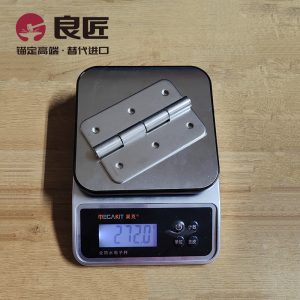

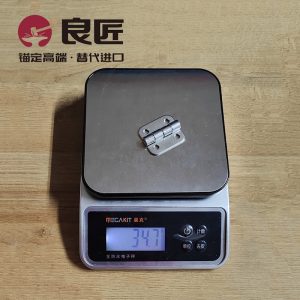

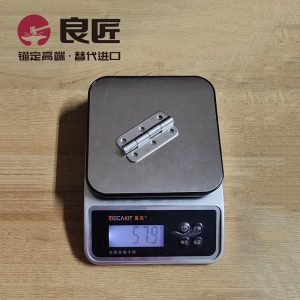

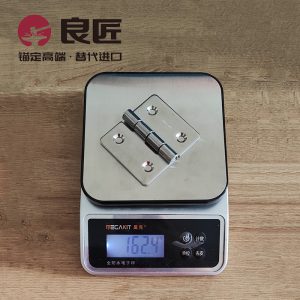

重量：
单位：g
